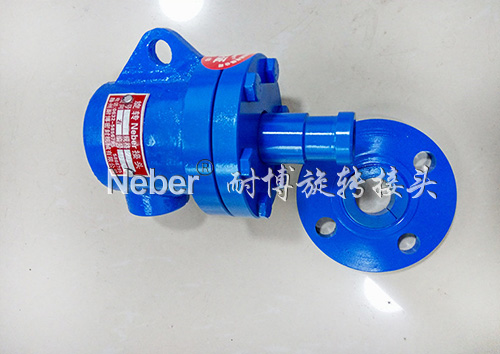

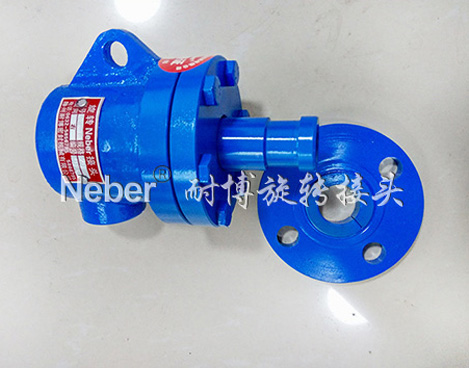

QDF20旋转接头参数:
高转速:100RPM
高温度:220℃
高压力:1.8MPa
适用介质:饱和蒸汽、过热蒸汽、过热水
单向流通式——半分环法兰连接.
规格
|
型号
|
C
|
E
|
F1
|
H
|
I1
|
I2
|
J
|
L
|
L4
|
L5
|
M1
|
M2
|
N
|
O
|
P
|
Q
|
R
|
S
|
T
|
U
|
20
|
QD-F20
|
RC3/4
|
96
|
48
|
48
|
12
|
12
|
25
|
156
|
133
|
55
|
104
|
-
|
18
|
27
|
75
|
105
|
16
|
8
|
4
|
14
|
25
|
QD-F25
|
Rc1
|
75
|
50
|
55
|
12
|
12
|
26
|
180
|
165
|
47
|
-
|
95
|
25
|
33.5
|
85
|
115
|
16
|
8
|
4
|
14
|
32
|
QD-F32
|
Rc1-1/4
|
120
|
63
|
70
|
14
|
14
|
26
|
198
|
156
|
62
|
-
|
98
|
30
|
42
|
100
|
140
|
18
|
12
|
4
|
18
|
40
|
QD-F40
|
Rc1-1/2
|
130
|
70
|
78
|
16
|
16
|
32
|
220
|
187
|
69
|
-
|
125
|
38
|
48
|
110
|
150
|
18
|
12
|
4
|
18
|
50
|
QD-F50
|
Rc2
|
160
|
80
|
80
|
18
|
18
|
35
|
244
|
199
|
70
|
138
|
-
|
48
|
60
|
125
|
165
|
20
|
15
|
4
|
18
|
